Tube bending is a common process in most Canadian fabrication shops, applied across industries from automotive and aerospace to construction and furniture production. While mandrel and non-mandrel bending are widely used, having some knowledge of each can make a difference to the product’s quality, price, and manufacture efficiency. For individuals who desire to be ahead of the game in this competitive market, they need to understand how the two processes differ.
What Is Mandrel Tube Bending?
Table of Contents
Mandrel tube bending occurs when a mandrel (or a solid or a flexible rod) is placed inside the tube while bending. It gives support internally and stops the tube from undergoing shape change while bending.
Some of the key benefits of mandrel tube bending are:
- Prevents wrinkling or collapsing of thin-walled tubes
- Allows for a uniform internal diameter to be created
- Creates tighter radius bends with no distortion
- Creates smoother finishes with fewer defects
Mandrel bending is applied where greater precision is needed, i.e., in aerospace, medical device sector, and auto exhaust systems.
What Is Non-Mandrel Tube Bending
Non-mandrel bending, or “free-form” bending, excludes the use of internal support. The tube is bent with the use of external pressure alone in its place.
Benefits of non-mandrel bending are:
- Faster setup and lower equipment expense
- Best suited for heavier-walled tubes with collapse resistance
- Functions well in tighter radii and smaller radii
- Best suited for designs where inner accuracy is not a concern
The process is most commonly used in construction, general fabrication, and designs where cosmetics and internal consistency are less critical than function.

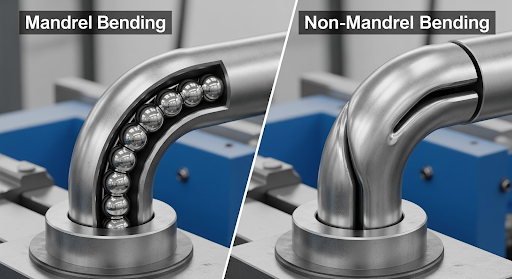

Key Differences Between Mandrel and Non-Mandrel Bending
A side-by-side comparison chart for Canadian shops making a decision:
| Feature | Mandrel Tube Bending | Non-Mandrel Tube Bending |
| Internal Support | Mandrel inserted inside tube | No internal support |
| Best For | Thin-walled tubes, tight radii | Thick-walled tubes, large radii |
| Accuracy | High precision, smooth bends | Moderate precision |
| Applications | Automotive, aerospace, medical | Construction, general fabrication |
| Cost & Setup | Higher investment, longer setup | Lower cost, faster setup |
Why Mandrel Bending is Used by Canadian Shops
Mandrel bending is the choice of Canadian fabrication shops when working with industries that require consistency and reliability. For instance:
- Automotive exhaust systems: Clean curves enhance airflow and performance.
- Medical equipment: Patient safety requires high-precision tubing.
- Furniture manufacturing: Mandrel bending produces visually clean, consistent curves.
- Aerospace applications: Tolerances are critical, and mandrel bending ensures compliance.
Increased investment in process but long-term benefit on customer confidence and reduced rejected parts.
Where Non-Mandrel Bending Is Still Holding its Ground
Non-mandrel bending is still utilized in Canadian plants where lead time and cost savings are most paramount.
Examples:
- Construction handrails: Quick turnaround on larger radius bends.
- Agricultural equipment: Resistance to stress without internal failure on heavy walled tubes.
- Simple frames: Instances where appearance and ventilation are less important.
In lower-cost applications or mass production of heavier tubing, mandrel bending would still not be the optimum choice.
Challenges with Both Processes
Both mandrel and non-mandrel bending pose challenges that shops must overcome:
Mandrel Bending Challenges:
- Increased tooling and maintenance expense
- Increased operator training required
- Slower small run setup
Non-Mandrel Bending Challenges:
- Increased threat of wrinkling or ovalizing
- Poor capability of making tight radius bends
- Less ideal for high-standards industries
Balancing these elements allows stores to coordinate bending techniques with customer demand and production plans.
Canadian Climate and Impact
Canadian climate may also influence tube bending performance. Temperature fluctuations may impact metal flexibility, particularly during winter as cold tubing becomes brittle. Mandrel bending stores usually use climate-control conditions to enhance precision.
For non-mandrel bending, the thick-walled tubing is less prone to seasonal temperature fluctuation and thus a simpler option where modern shop floor climate control is impossible.
FAQs
Q1. Which method is better for thin-walled tubing?
Mandrel bending is the superior method for thin-walled tubes as it avoids wrinkling and collapse.
Q2. Is non-mandrel bending cheaper?
Yes. Less tooling and setup and hence less expensive for runs of bulk tubing.
Q3. Do all Canadian shops have mandrel bending machines?
Not always. Small shops use non-mandrel benders, and larger shops invest in mandrel systems.
Q4. Can both processes be applied in one project?
Yes. Shops can use multiple techniques for different parts of a single project, depending on design.
Q5. How do I decide what type of bending to request for my project?
It depends on material thickness, required radius, and application. You can be guided on your requirements project by a fabrication shop.
Key Takeaway
For Canadian manufacturing factories, mandrel vs. non-mandrel tube bending is dependent upon the project. Mandrel Tube Bending is ideal for precision, tight radii, and high-end markets. Non-mandrel provides speed, economy, and reliability for larger material and simpler projects. Knowing both processes, factories can choose the optimal method for producing quality output to meet customers and maintain pace with Canada’s thriving manufacturing sector.
